Kebab MkII L

Manufacturer: Mimaki

UJF-6042 MKII, UJF-7151 Plus OPTION

Printing on cylindrical products

  • 360-degree direct printing on cylindrical products!
  • Printing on a wide range of material sizes

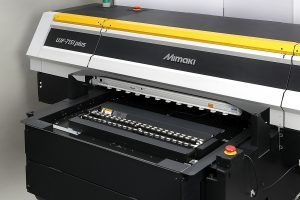

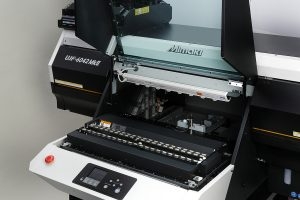

  • Easy mounting on the UJF-6042MKII, UJF-7151 plus
  • Expanding the possibility of decoration-printing on 3D object!

Applications: Glass Bottles, Aluminum Containers, Stainless Steel Tumblers, Decorative Candles and more…


Kebab & Kebab MkII options: 360-degree direct printing on cylindrical products

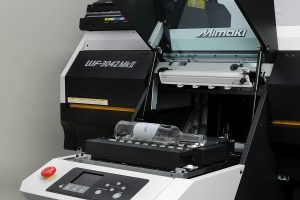

The Kebab and Kebab MkII options enables printing directly onto cylindrical objects such as stainless steel drink tumblers and glass bottles.

The Kebab option

  • 360-degree direct UV LED printing on cylindrical objects
  • Print on tumblers, watter bottles, candles, cans, etc.
  • Easy and accurate mounting on the printer bed via threaded registration points
  • User-friendly print settings and functions via RasterLink6 software
  • Intuitive operation







Highlights of the Mimaki Kebab

Printing 360 degree on the surface of almost any cylindrical object

The Kebab & Kebab MkII options enables printing on cylindrical objects ranging from about one to over 26.5 inches in length, (Kebab MkII L) with a diameter up to  4.33 inches.

What you can do with the Mimaki Kebab & Kebab MkII options

  • Glass Bottles
  • Aluminum Containers
  • Stainless Steel Tumblers
  • Decorative Candles
  • and more…

Technical overview of the Mimaki Kebab and Kebab MkII options

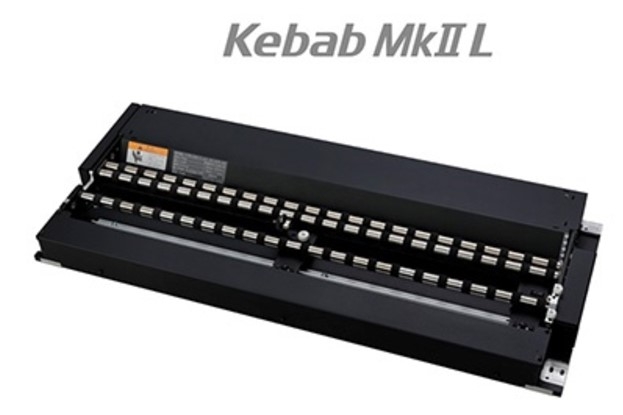

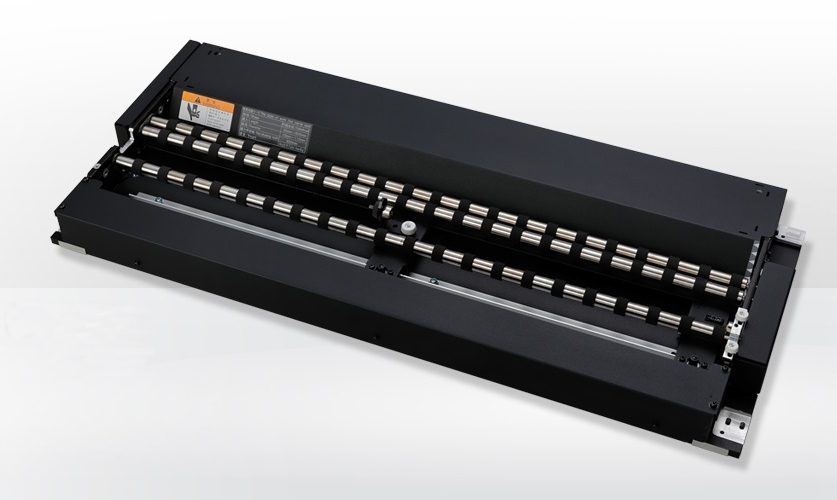

Kebab MKII L

Part number

OPT-J0433

Supported machines

UJF-6042 MkII, UJF-7151 plus

Maximum media rotation

360° or more (no limitation)

Rotation method of media

Friction of roller

Media shape

Cylindrical

Media size

Small Diameter

Large diameter

Width

.39 – 2.52 inches (10 – 64.2mm)

2.53 – 4.33 inches (64.3 – 110mm)

1.18 – 23.62 inches (30 – 600mm)

Print area

Feed (X) direction

Feed (X) direction

360° or more (no limitation)

23.62 inches (600mm) or less

Max media weight

Small Diameter

Large diameter

3.3 lbs (1.5kg) or less

4.4 lbs (2.0kg) or less

Interface

Dedicated connector

Weight

Approx. 13.22 lbs (6kg)

Dimensions (W x D x H)

26.53 x 11.8 x 1.9 inches

674 x 301 x 50mm
