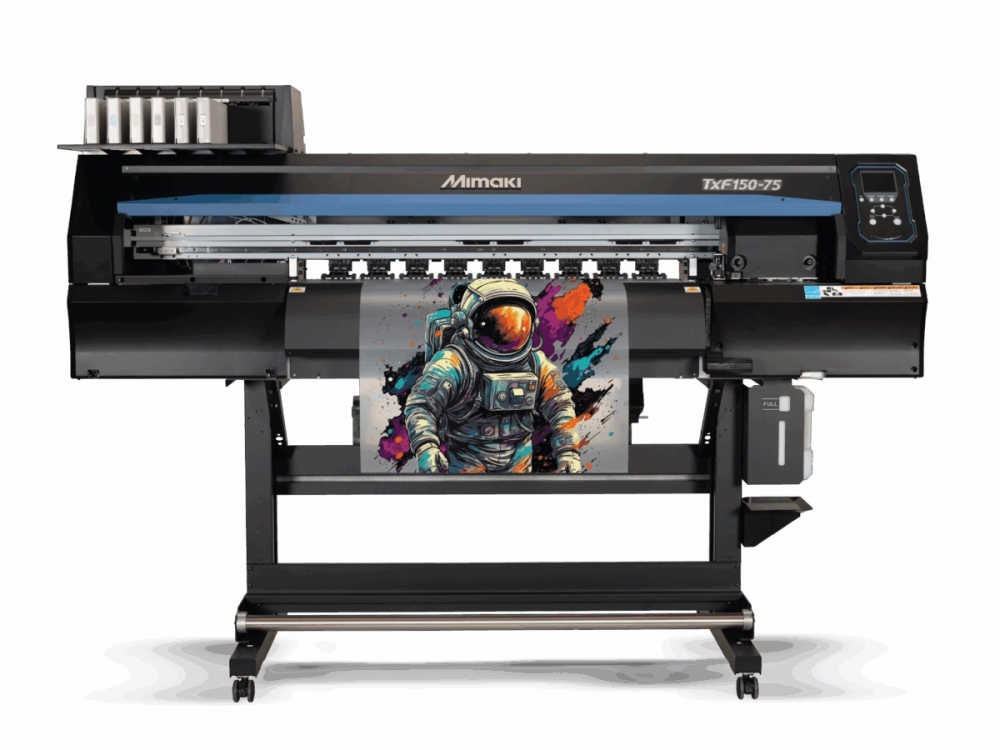

Mimaki TXF150-75
The TXF150-75 is Mimaki's entry-level 80 cm (31.5 in) Direct-to-Film (DTF) transfer printer designed specifically to overcome common industry challenges such as white ink sedimentation and nozzle clogging.
Key Features & Technologies
-
Mimaki Circulation Technology (MCTv2): Continuously circulates the white ink through the lines and dampers to prevent pigment settling and ensure consistent opacity.
-
Degassed Aluminum Ink Packs: Uses vacuum-sealed aluminum ink pouches to prevent air bubbles and oxygen from entering the ink path, drastically reducing ink ejection defects.
-
Nozzle Check Unit (NCU) & Nozzle Recovery System (NRS): Automatically detects clogged nozzles, runs targeted cleaning cycles, and substitutes missing nozzles with functioning ones so production continues uninterrupted.
-
PHT50 Heat Transfer Inks: Water-based pigment ink set (CMYK + White) that carries OEKO-TEX® ECO PASSPORT certification, ensuring safe transfers for apparel and textiles.
-
Advanced Pinch Roller & Feeding System: Engineered with a specialized pinch roller layout to maintain precise media tension and prevent slipping on slick DTF transfer films.
-
3-Way Intelligent Heater: Integrated pre-heater, print heater, and post-heater maintain optimal ink absorption and prevent blur or bleeding on film media.
Key Technical Specifications
| Feature | Specification |
| Print Head | On-demand piezo print head |
| Max Print Resolution | 720dpi, 1080dpi, 1440dpi |
| Max Printing Width | 800 mm (31.5 in) |
| Max Media Width | 810 mm (31.9 in) |
| Ink Type | Mimaki PHT50 Heat Transfer Pigment Ink |
| Ink Colors | Cyan, Magenta, Yellow, Black, White |
| Ink Capacity | 600 ml ink packs (500 ml for White) |
| Interface | Ethernet 1000 BASE-T / USB 2.0 Hi-Speed |
| Dimensions (W×D×H) | 77.4" x 27.6" x 54.8" |
| Weight | 126 kg (277.8 lbs) |
