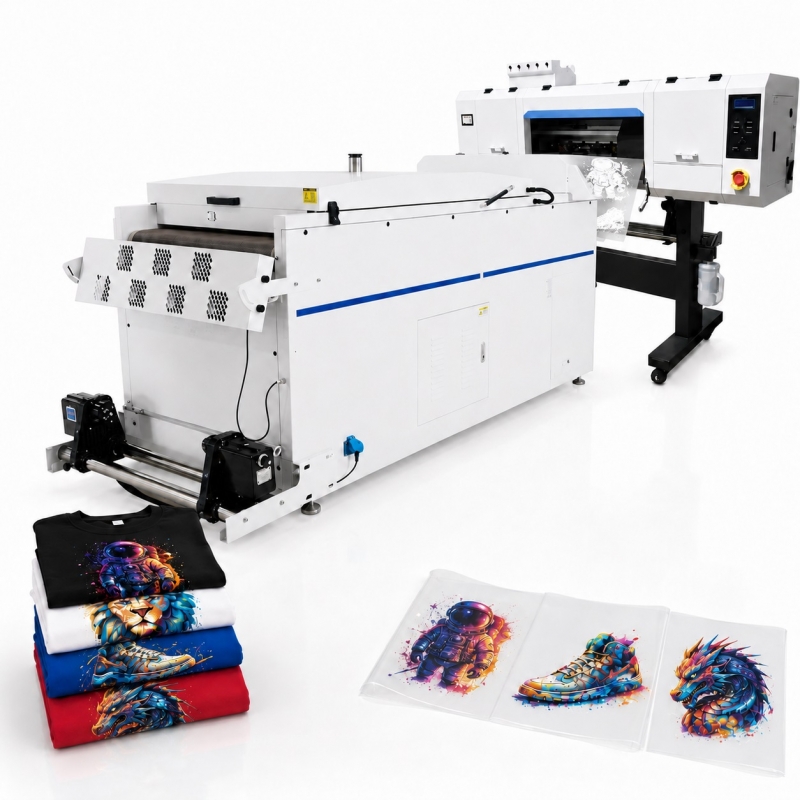

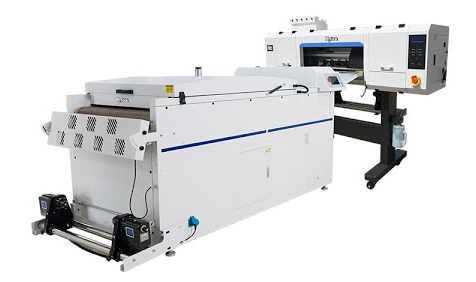

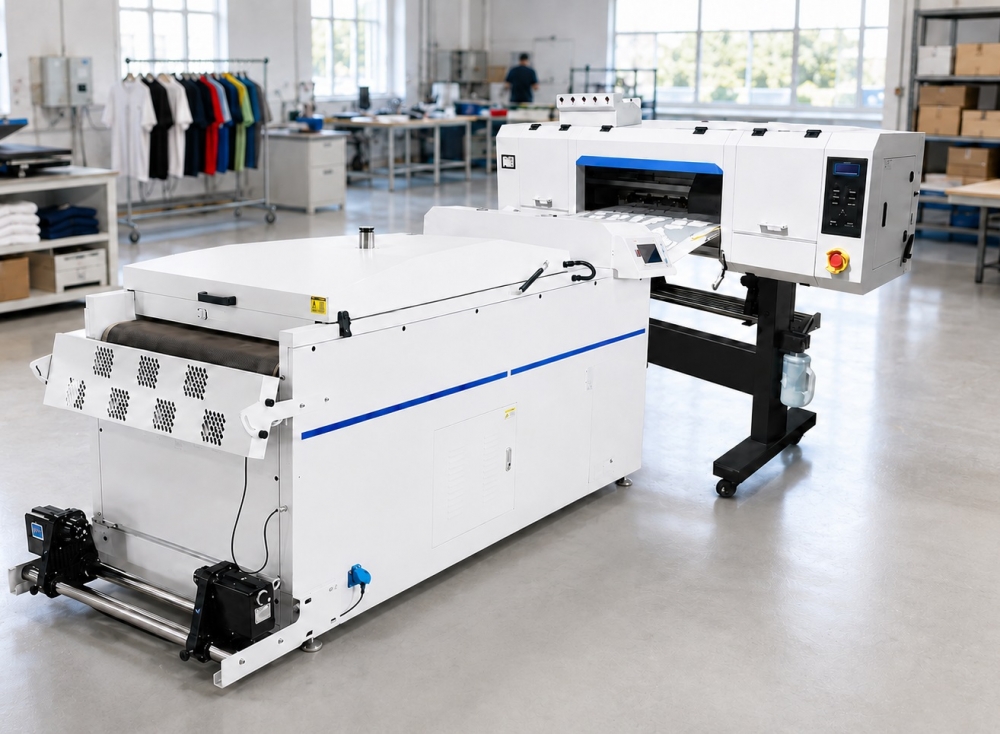

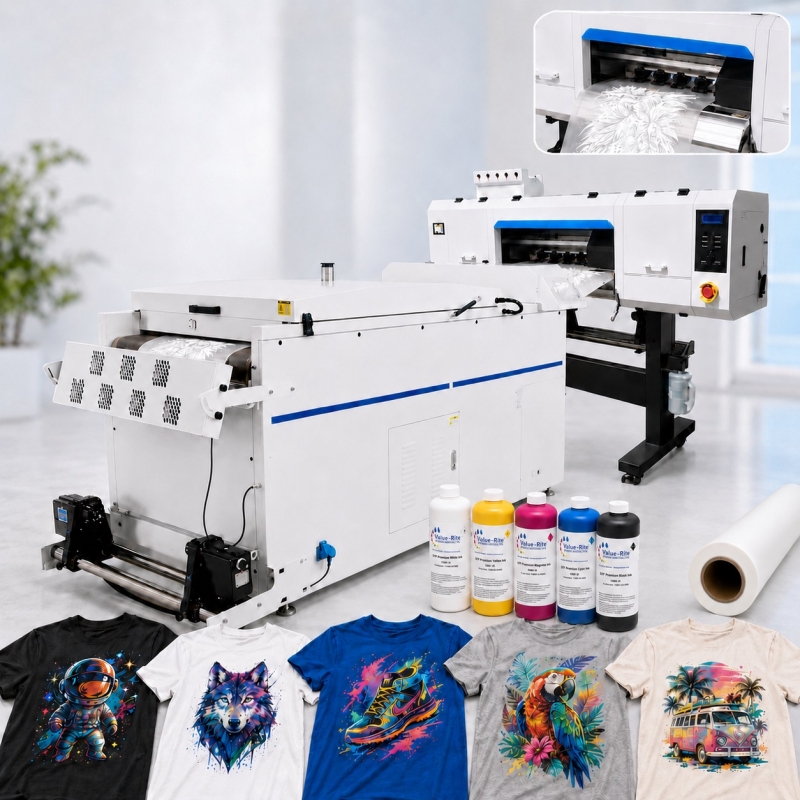

MyColor 24" 4 Head DTF Printing System
The MyColor 24" 4-Head DTF Printing System is an industrial, high-volume direct-to-film production solution engineered for high-demand apparel print shops, fulfillment centers, and commercial garment manufacturers. Powered by four Epson I3200-A1 printheads, the system doubles the output speed of 2-head models by dedicating multiple printheads to CMYK color and white ink underbase simultaneously. Delivering sharp fine details, dense white coverage, and vivid colors, it processes gang sheets and custom graphics at maximum throughput.
With a full 600 mm (24-inch) print width, the 4-head system pairs seamlessly with an automated roll-to-roll powder shaker and infrared curing unit to handle continuous, large-scale production with minimal operator intervention.
Key Features
-
Quad Epson I3200-A1 Printheads for industrial-grade speed, resolution, and continuous production output.
-
Up to 600 mm / 24-Inch Print Width designed for high-density gang-sheet production and oversized apparel graphics.
-
4-Head Ink Configuration (Dedicated CMYK and White printhead paths) to maximize print speed and white underbase density.
-
Up to 3200 dpi Resolution for high-definition detail, fine text, and smooth tonal gradients.
-
High-Speed Production reaching up to 26–28 $text{m}^2/text{hour}$ in high-speed modes.
-
Advanced White Ink Circulation System (WIMS) to continuously agitate white pigment and prevent nozzle clogging or sedimentation.
-
Heavy-Duty Industrial Frame & Linear Rail to maintain frame stability during high-speed, continuous printing.
-
Auto-Tension & Pinch-Roller System for reliable film feeding and movement control.
-
Automated Powder Shaker & Infrared Curing Belt with automated powder application, excess powder removal, and temperature-controlled curing.
Production Speeds
| Print Mode | Rated Speed |
|---|---|
| 4 Pass | Up to 26 m²/hour |
| 6 Pass | Up to 26 m²/hour |
| 8 Pass | Up to 11 m²/hour |
Advantages of the MyColor 4 Head DTF System
Maximum Throughput for High-Volume Production
By doubling the printhead capacity from two to four heads, this printing system dramatically reduces turnaround times.
Continuous Print-to-Cure Workflow
The printer operates in sync with the automated powder application and curing tunnel. Printed film moves directly into the powdering station, receives an even coating of hot-melt powder, shakes off the excess, and passes through the infrared heater, resulting in ready-to-press transfers off the roll.
Vibrant Colors & Uncompromised White Underbase
With dedicated white ink printheads operating concurrently with CMYK color heads, the printer maintains thick, opaque white backing layers even at maximum line speeds. Transfers maintain vibrant color reproduction and opacity across all garment colors, including dark cottons and synthetics.
Efficient Gang-Sheet Utilization
The 24-inch width allows operators to nest dozens of client logos, full-chest designs, and neck labels onto a single continuous roll, maximizing film efficiency and reducing unit cost per print.
Automated System Health & Maintenance
Built-in white ink circulation, automatic capping stations, and film sensors minimize manual maintenance routines, ensuring consistent ink viscosity and protecting printheads during extended shifts.
