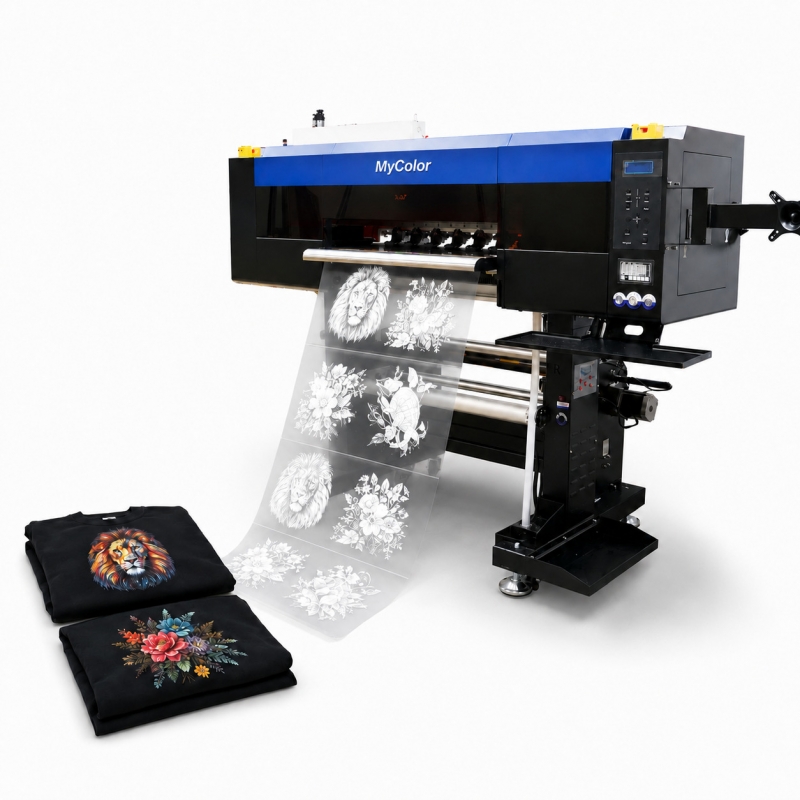

MyColor 24" 6 Head DTF Printing System
The MyColor 24-inch 6 Head DTF Printing System is an industrial direct-to-film production platform designed for apparel decorators, high-volume transfer shops and growing custom-print businesses. Six Epson i3200-A1 printheads support efficient simultaneous colour and white-ink output, producing vibrant graphics, smooth gradients and strong underbase coverage for light and dark garments.
With an approximately 60 cm / 24-inch print width and rated production speeds of up to 28 m²/hour in six-pass mode, this six-head system is built for large gang sheets, continuous transfer production and demanding apparel-decoration workflows. Pair the printer with the matching automatic powder shaker and curing unit for an integrated roll-to-roll process.
Key Features
- Six Epson i3200-A1 printheads deliver high-production colour and white-ink output
- Approximately 60 cm / 24-inch print width supports full-width gang sheets and larger garment graphics
- Production speeds up to 28 m²/hour in six-pass mode
- Dedicated colour and white printhead configuration supports efficient simultaneous CMYK and white printing
- CMYK plus white pigment inks create vibrant transfers with dependable coverage on dark garments
- Automatic white-ink circulation and management help maintain consistent white-ink performance
- Precision media feeding and automatic tension control support stable continuous film handling
- Heavy-duty industrial construction is designed for demanding commercial production
- Touchscreen operation and Hoson control board provide practical production control

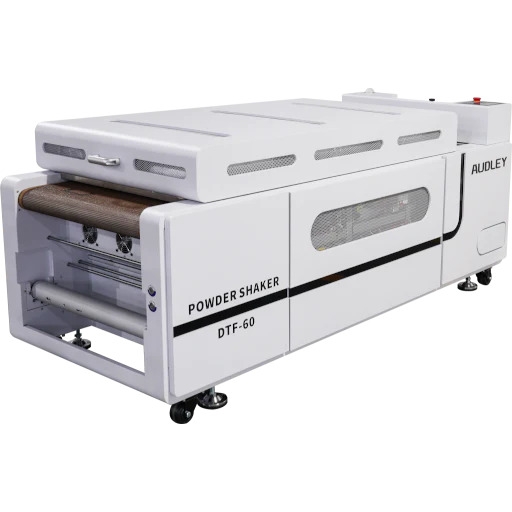

- Compatible DF-800L(A)Pro automatic powder shaker supports coordinated powder application and curing
- Canadian-made DTF inks available through Value-Rite provide reliable local supply options
- 220 V power supply required for the available configuration
Production Specifications
| Specification | Details |
|---|---|
| Printhead Configuration | 6 × Epson i3200-A1 |
| Maximum Print Width | Up to 60 cm / 24 inches |
| Production Mode | 6 Pass |
| Rated Production Speed | Up to 28 m²/hour |
| Ink Configuration | CMYK + White |
| Electrical Supply | 220 V, 50/60 Hz |
| Matching Powder Shaker | DF-800L(A)Pro |
| Operating Temperature | 15–30 °C |
Actual production speed varies with artwork, resolution, print configuration and operating conditions.
Advantages of the MyColor 24-inch 6 Head DTF System
Industrial Six-Head Production Capacity
Six Epson i3200-A1 printheads provide the output needed for busy apparel decorators, transfer producers and shops scaling beyond entry-level DTF equipment.
Full-Width 24-Inch Gang-Sheet Production
The approximately 60 cm print format accommodates larger designs, efficient gang sheets and continuous roll-to-roll transfer production.
Efficient Colour and White-Ink Performance
Dedicated colour and white printing support detailed artwork, smooth gradients and dependable white underbases for both light and dark fabrics.

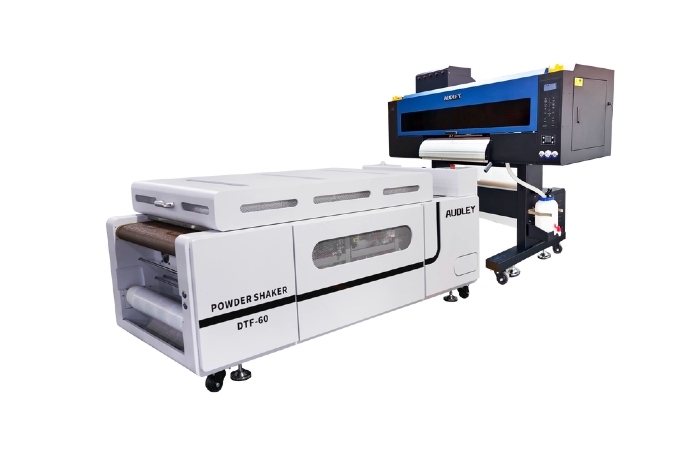

Integrated Powdering and Curing Workflow
The compatible DF-800L(A)Pro powder shaker supports automated adhesive application, excess-powder removal and curing as part of a coordinated production line.
Versatile Apparel and Textile Applications
Produce transfers for T-shirts, hoodies, team uniforms, workwear, sportswear, tote bags and other suitable textile products.
Local Equipment, Ink and Technical Support
Value-Rite supports your DTF workflow with equipment guidance, compatible supplies, Canadian-made DTF inks and knowledgeable technical support.
