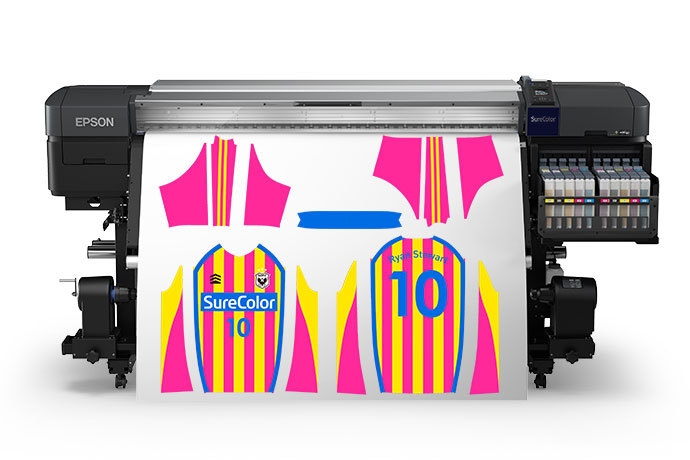

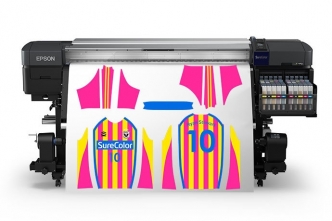

Epson F9470H 64"

Manufacturer: Epson

Produce vibrant apparel, soft signage, décor and more with the high-performance SureColor F9470H 64-inch printer. Purposefully designed for high-visibility dye-sublimation printing, the F9470H features the full spectrum of brilliant UltraChrome® DS6 ink, including Fluorescent Pink and Fluorescent Yellow, for exceptional color saturation and brightness. The perfect choice for high-volume, industrial environments, the F9470H includes dual PrecisionCore® TFP® printheads and delivers outstanding-quality prints at speeds up to 1,169 sqft/hour1. A truly turnkey solution, the F9470H arrives with Epson Edge® workflow software, highly accurate roll-to-roll media support system with advanced auto paper-tension control, and high-capacity ink tanks for seamless 24/7 production.


  • Breakthrough productivity — dual printheads deliver industrial-level, roll-to-roll performance at speeds up to 1,169 square feet/hour1
  • Brilliant image quality — UltraChrome DS6 Ink2 Technology with fluorescent Yellow and Pink ink produces exceptional color saturation and high contrast
  • True roll-to-roll support — high-accuracy take-up reel supports efficient calendar heat press transfer
  • Turnkey solution, fully supported by Epson — includes Epson Edge Print and ICC profiles, for use with optimized Epson DS Transfer Papers
  • Predictable, reliable performance — advanced auto paper-tension control and the fabric head wiper enable simple, continuous production
  • More ink means less downtime — high-capacity ink tanks hold up to 3 L per color, for longer print runs without user intervention
  • Epson Edge Dashboard — remotely run cleanings, check ink levels, update firmware and download new media profiles from your computer
  • Exclusive Epson Rewards program available — accumulate points with every consumable purchase for discounts on extended service coverage; visit www.epson.com/SureColorRewards for more information
  • Affordable, scalable solution — offers an excellent performance-to-price ratio; easily add printers to meet your business needs

Printer is designed for use with Epson ink packs only, not third-party ink packs or ink*.



Eco Features

  • RoHS compliant
  • Recyclable product3
  • Epson America, Inc. is a SmartWay™ Transport Partner4
  • Epson UltraChrome DS Ink is certified by ECO PASSPORT by OEKO-TEX®, meaning it’s safe for adults, children and babies2


Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment



What's In The Box:



  • SureColor F9470H Dye-sublimation Inkjet Printer
  • UltraChrome DS Ink - 2,000 mL each color x 4 colors, and 1,000mL of fluorescent Yellow and fluorescent Pink
  • Epson Edge Print Software
  • Power Cords
  • Product Warranty



Print:


Printing Technology:Dual advanced PrecisionCore® TFP® 10-channel, drop-on-demand, inkjet printhead with ink-repelling coating technologyMinimum Ink Droplet Size:Variable Droplet TechnologyMaximum Print Resolution:1440 x 720 dpiPrint Speed:

  • Speed: up to 1,169 sq ft/hr1
  • Sports apparel: up to 568 sq ft/hr1
  • Fashion/signage: up to 1,004 sq ft/hr1



Ink:


Ink Type:UltraChrome DS6 ink technology; 5-colorInk Configuration:C, M, Y, HDK, Fy, FpReplacement Ink:UltraChrome DS Ink

  • High Density Black Ink Packs (T46C820)
  • Cyan Ink Packs (T46C220)
  • Magenta Ink Packs (T46C320)
  • Yellow Ink Packs (T46C420)
  • Fluorescent Pink Ink Packs (T46C520)
  • Fluorescent Yellow Ink Packs (T46C620)



General:


Operating Systems:Windows® 10 and 8.1System Requirements:Minimum PC Requirements: 2GHz CPU, 2GB RAM, 120GB HDD, DVD-ROM or Internet connection
Recommended PC Specifications: 3GHz or higher quad core CPU, 8GB RAM, 500GB SSD, and high-speed Internet connectionTemperature:Operating: 59 ˚ to 95 ˚F (15 ˚ to 35 ˚C)
Operating (recommended): 59 ˚ to 77 ˚F (15 ˚ to 25 ˚C)Humidity:Operating: 20 – 80% (no condensation)
Operating (recommended): 40 – 60% (no condensation)Sound Level:Less than 59 dB(A) according to ISO 7779Dimensions:103" x 37" x 53" (2,620 mm x 934 mm x 1,332 mm) (W x D x H)Weight:639 lb (290 kg)Eco Features:RoHS compliant
Recyclable product4
Epson America, Inc. is a SmartWay® Transport Partner5
Epson UltraChrome DS Ink is certified by ECO PASSPORT by OEKO-TEX®, meaning it’s safe for adults, children and babies.Country of Origin:ChinaWarranty:

Standard 1-year limited warranty. Optional Epson Service programs available for a total of 3 years of coverage.3



Ink Supply System:


Ink Supply Fill Volume:
  • 3,000 mL each x CMYHDK2
  • 2,000 mL each x FyFp2
In-box Ink Fill Volume:
  • 2,000 mL each x CMYHDK2
  • 1,000 mL each x FyFp2

Ink Shelf Life:2 years from printed production date Printer is designed for use with Epson ink packs only, not third-party ink systems*.



Printable Area and Accuracy:


Maximum Paper Width:64"Minimum Paper Width:11.8"Maximum Printable Width:Up to 63.6"



Sheet Media Handling:


Left/Right Margins:0.20" (0.40" total)



Roll Media Handling:


Single Roll-to-Roll / Top-loading Roll:64" wideMedia Core:2" or 3" core diameterMaximum Roll Diameter:Up to 9.8"Maximum Roll Weight:Up to 100 lbMedia Thickness:From 45 gsm to 1 mm thickTake-up Reel:Fully automatic “wind in” or “wind out” with tension control



Printer Details:


Printer Language:Epson ESC/P® rasterInterfaces:Hi-Speed USB 2.0 (1 port)
1000Base-T Ethernet (1 port)



Power:


Rated Voltage:AC 100 – 120 V; 200 – 240 VRated Frequency:50 / 60HzPower Consumption:
  • Printing: approx. 570 W or less
  • Standby Heaters On: 340 W
  • Power Off: approx 1.0 W
  • Sleep Mode: approx 17 W

Power Requirements:Requires two outletsRated Current:10.0 A at 100 – 120 V, 5.0 A at 200 – 240 V


Description Size
SCF9470HPE SureColor F9470H 64"
Brand: Epson
Finishing:
Coating:
Substrate:
64" Please login/register to place the order
