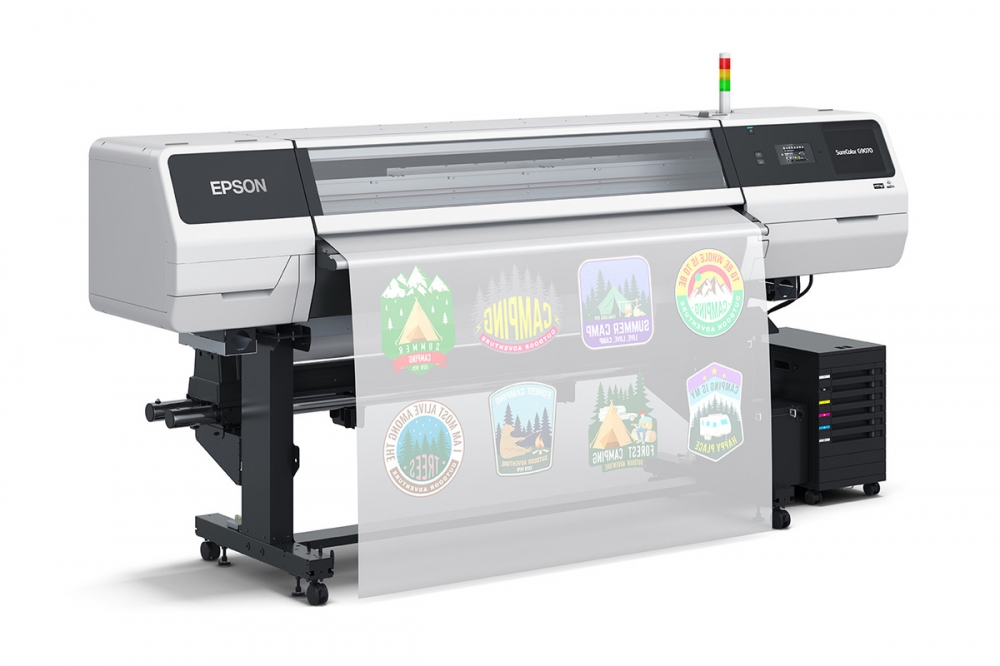

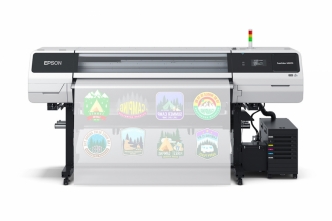

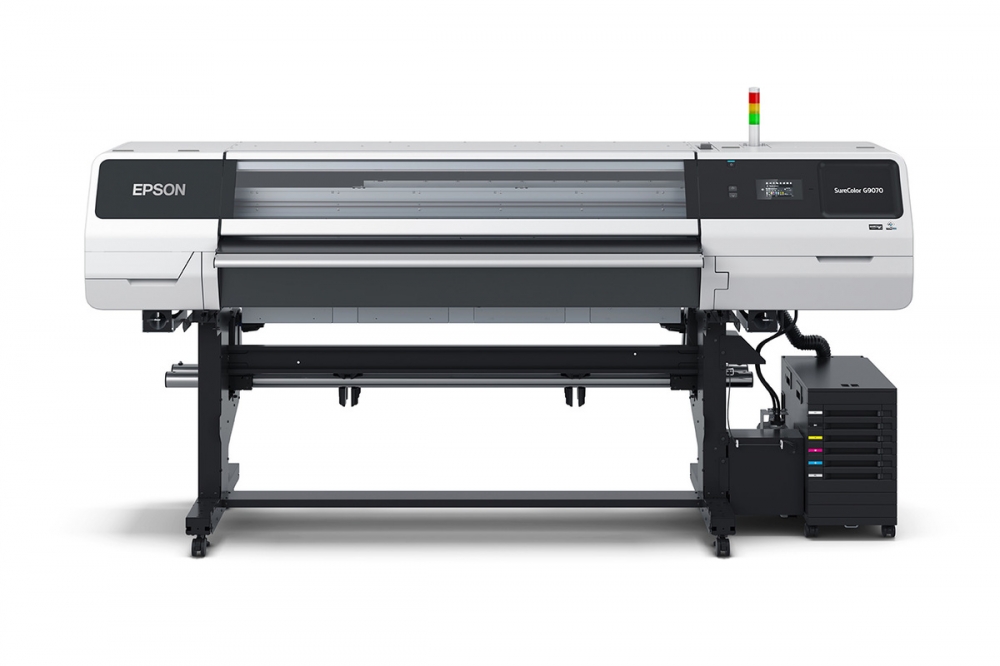

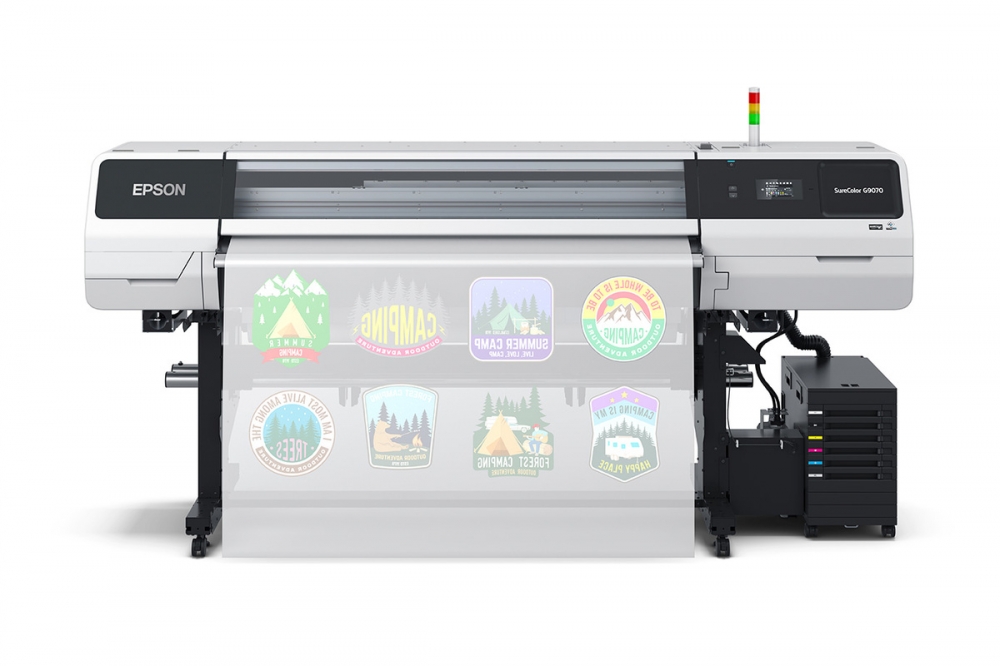

Epson G9070 64" DTF Production
The Epson SureColor G9070 is a 64-inch industrial Direct-to-Film (DTFilm) roll-to-roll printer designed for high-volume apparel decorators and round-the-clock print shop environments.
Key Features
-
High Speed & Throughput: Delivers printing speeds up to 350 sq ft/hr in standard CMYK + White mode and up to 650 sq ft/hr in single-layer White-only mode.
-

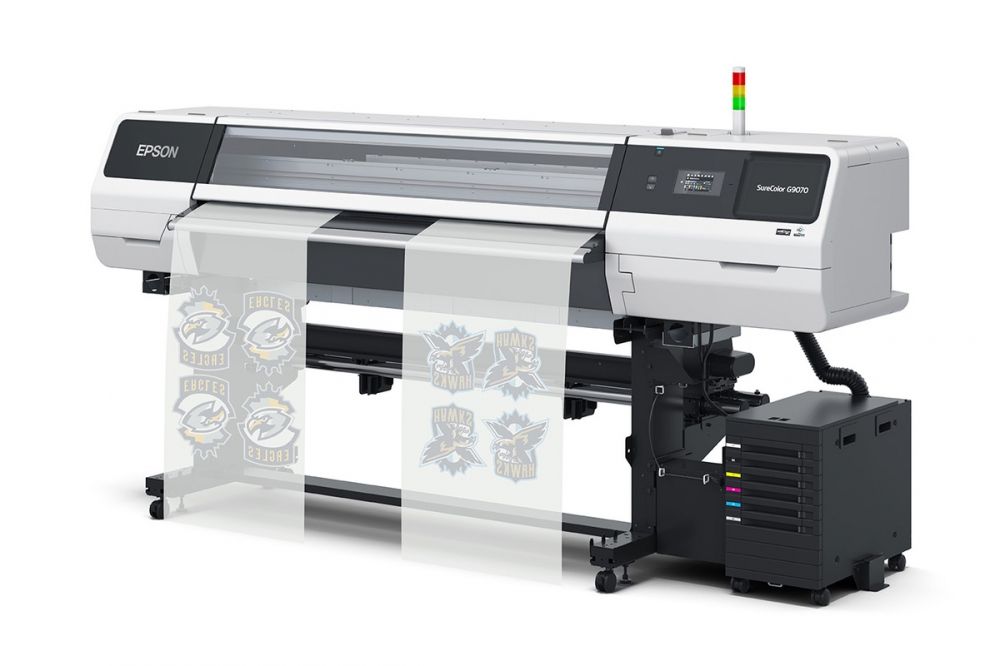

Twin-Roll Print Flexibility: Features twin-roll capability that allows print shops to run two film rolls side-by-side simultaneously (up to 64 inches total width) for maximum efficiency.
-
PrecisionCore Micro TFP Printheads: Industrial user-replaceable printhead setup with real-time nozzle compensation to minimize service calls and keep production moving.
-
Automated Maintenance: Equipped with Nozzle Verification Technology (NVT) and automated self-cleaning routines that automatically detect clogged nozzles and compensate on the fly.
-
UltraChrome DF Inks: Uses high-capacity 1.6-liter bulk ink packs.
The inks are OEKO-TEX ECO PASSPORT certified and CPSIA-compliant, ensuring transfers are non-toxic and safe for apparel. -
Fiery Digital Factory Software & Cloud Support: Bundled with production-grade RIP software for auto-nesting and rasterization, alongside Epson Cloud Solution PORT for remote monitoring, cost accounting, and operational alerts.
Technical Specifications
| Feature | Specification |
| Max Print Width | 64 inches (1,625 mm) |
| Print Resolution | Up to 1200 x 1200 dpi |
| Ink System | UltraChrome DF Pigment Ink (C, M, Y, K, White) |
| Ink Pack Volume | 1.6-Liter sealed bulk packs per channel |
| Media Handling | Twin-Roll capability / Roll-to-Roll up to 99 lbs (45 kg) per roll |
| Connectivity | Gigabit Ethernet (1000Base-T) & USB 2.0 |
| Dimensions (W x D x H) | 116" x 33" x 63" (2,949 mm x 844 mm x 1,605 mm) |
| Weight | 815 lbs (370 kg) |
