JFX200-2531

Manufacturer: Mimaki

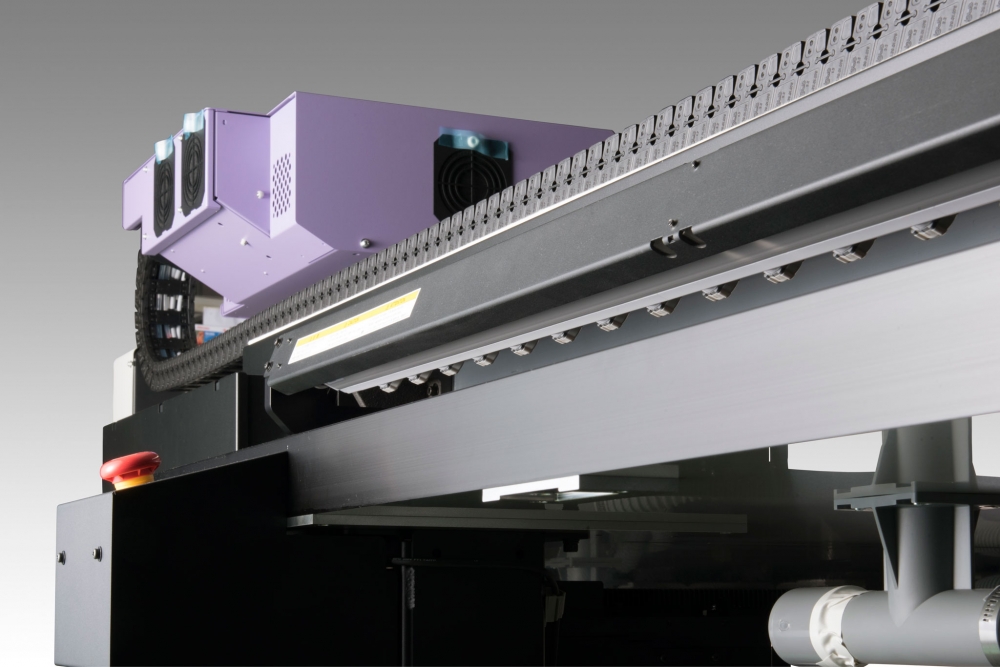

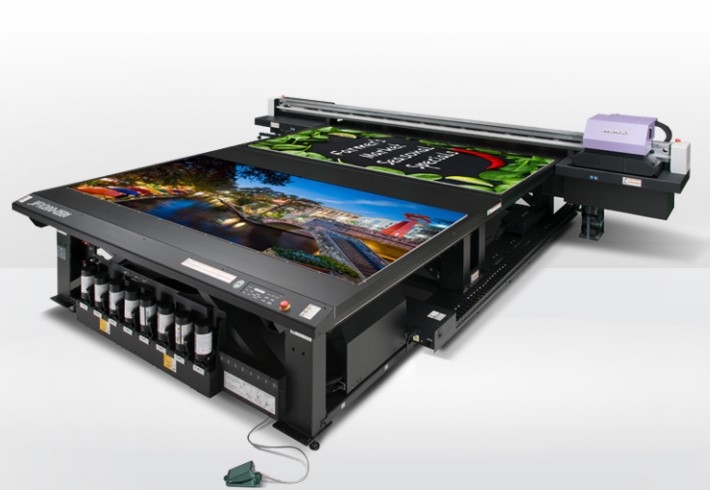

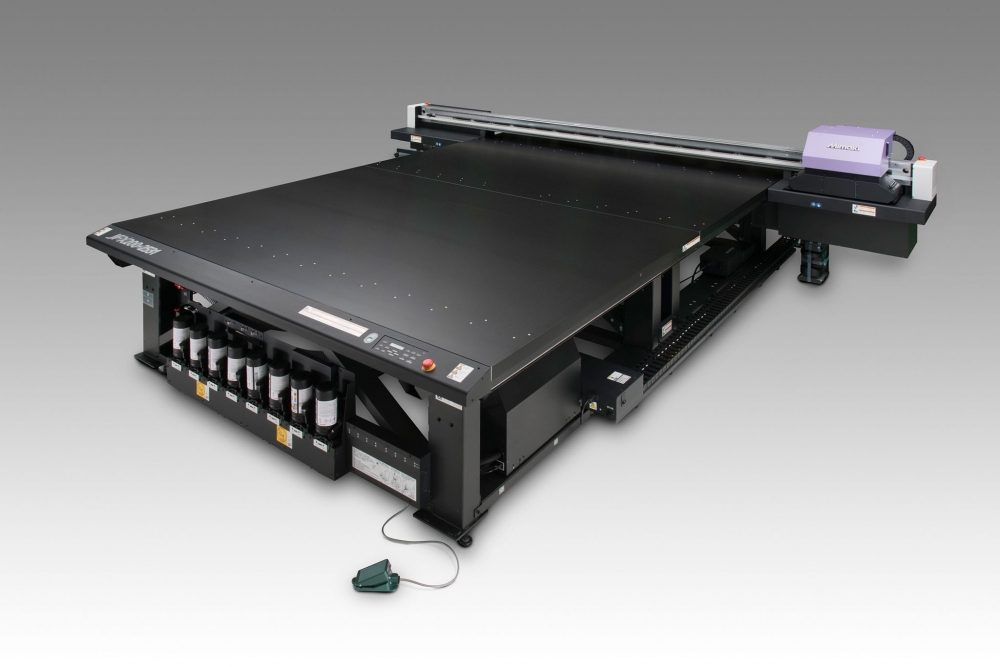

Mimaki JFX200-2531 wide format extended flatbed UV printer

The Mimaki JFX200-2531 extended-bed UV-LED flatbed printer is based on the popular JFX200-2513 printer, with double the print area and twin independent vacuum pumps to increase productivity by enabling printing to continue from one origin while the other is prepared. A variety of inks including white, clear and jettable primer are available to suit nearly any application. The UV-LED lamps offer reduced energy consumption and a longer lamp lifetime.

The Mimaki JFX200-2531 extended-bed UV-LED flatbed printer is based on the popular JFX200-2513 printer, with double the print area and twin independent vacuum pumps to increase productivity by enabling printing to continue from one origin while the other is prepared.

Dual-origin tableWith dual origin points, two 4- by 8-foot boards, oversized 8- by 10-foot boards, multiple position jigs or smaller pre-cut pieces can be loaded onto the table for continuous printing. While one section (origin point) is printing, the operator can unload a finished board from the previous section and affix the next board without stopping production.

Precise placement and hold: Standard layout pins per origin and scale ensure board alignment for repeatable, accurate media placement. Two vacuum zones per origin point hold media flat. Two independent vacuum pumps feed a total of four vacuum zones for maximum media control.

Mimaki Advanced Pass System (MAPS)WFC utilizes finely tuned frequencies for each ink’s specific gravity and viscosity to precisely shape and place individual drops, producing images that are optimized even at lower resolutions.

Applications : Signs & posters, Exhibition graphics, Backlit panels, Interior decor, Wood, Stone & Specialty and industrial applications.


Variable Drop Technology

The advantage of variable drop printing is most apparent when printing color gradations in light or pastel colors. Combined with Waveform Control and Mimaki original inks, Variable Drop Technology optimizes ink droplets for smooth skintones and fine line details.

Waveform Control (WFC)

WFC utilizes finely tuned frequencies for each ink’s specific gravity and viscosity to precisely shape and place individual drops, producing images that are optimized even at lower resolutions.

Mimaki Circulation Technology (MCT)

MCT continuously circulates White ink and reduces the need for manual maintenance and waste.

Nozzle Recovery System (NRS)

NRS assigns operational nozzles when an outage is detected, ensuring production and costs are not impacted.

UV-LED Technology

Mimaki’s UV-LED system uses less energy than other UV types, has a longer life and can print into media that could be damaged by higher-heat systems.

What you can do with the Mimaki JFX200-2531

The range of possible applications is practically limitless. Create:

  • Signs and posters
  • Point-of-purchase displays
  • Exhibit graphics
  • Backlit panels
  • Interior decor
  • Packaging prototypes
  • Specialty and industrial applications
  • Thermoformed panels and components
  • Art reproduction
  • Construction signs
  • Lenticular panels (printing with 3D effects)
  • ID cards
  • Operation panels
  • Promotional items
  • Relational gifts
  • Accessories
  • and more…

Print on:

  • Acrylics
  • Polycarbonates
  • PVC
  • Glass
  • Aluminum
  • Metal
  • Polyester
  • Foam board
  • Styrene
  • Wood
  • Stone
  • and more…

Levels of adhesion differ between materials. Be sure to test both substrates and ink options for best results.
