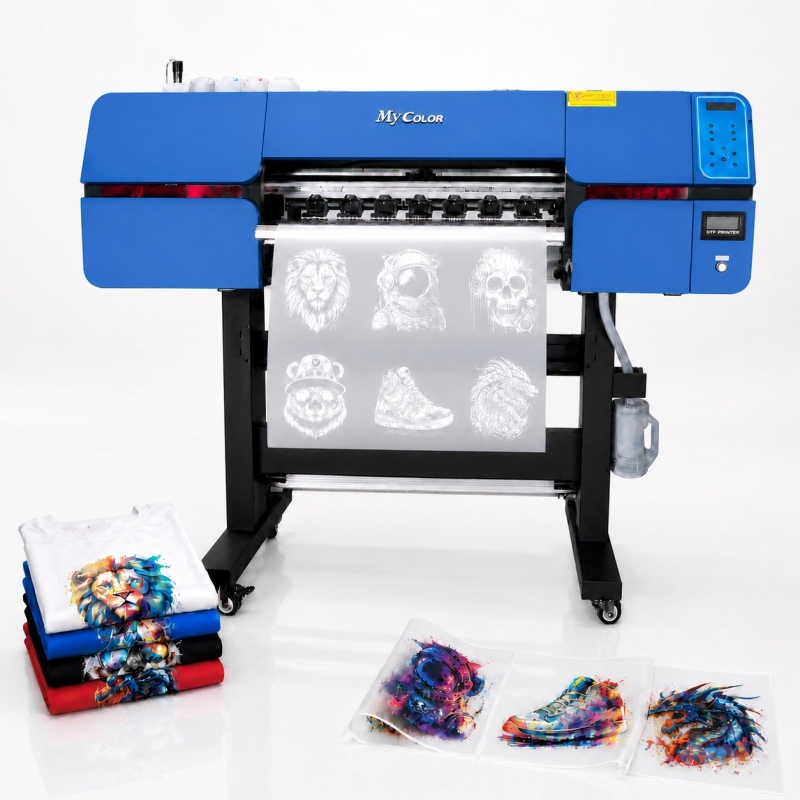

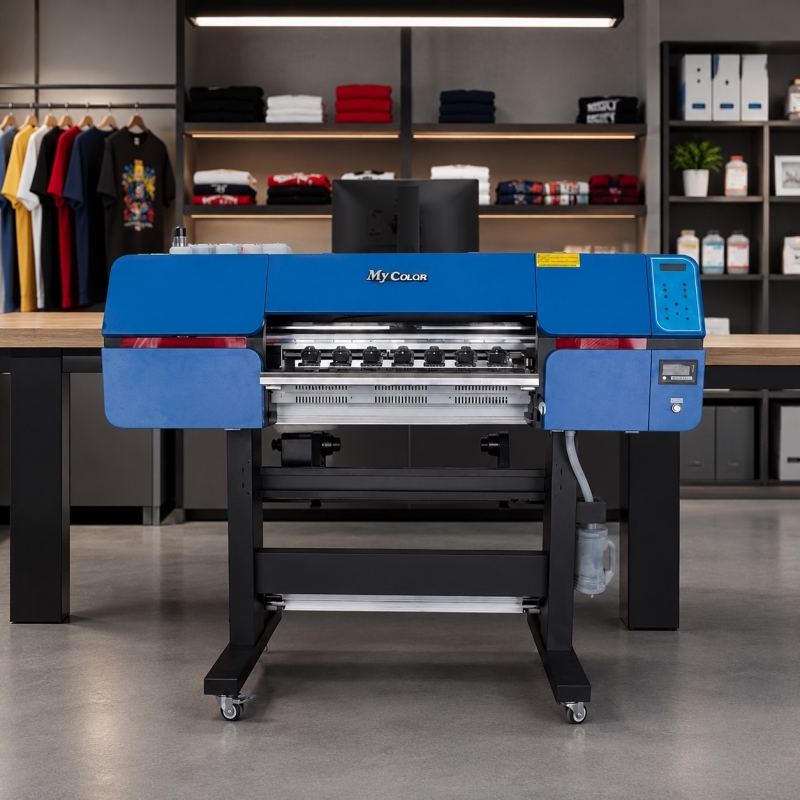

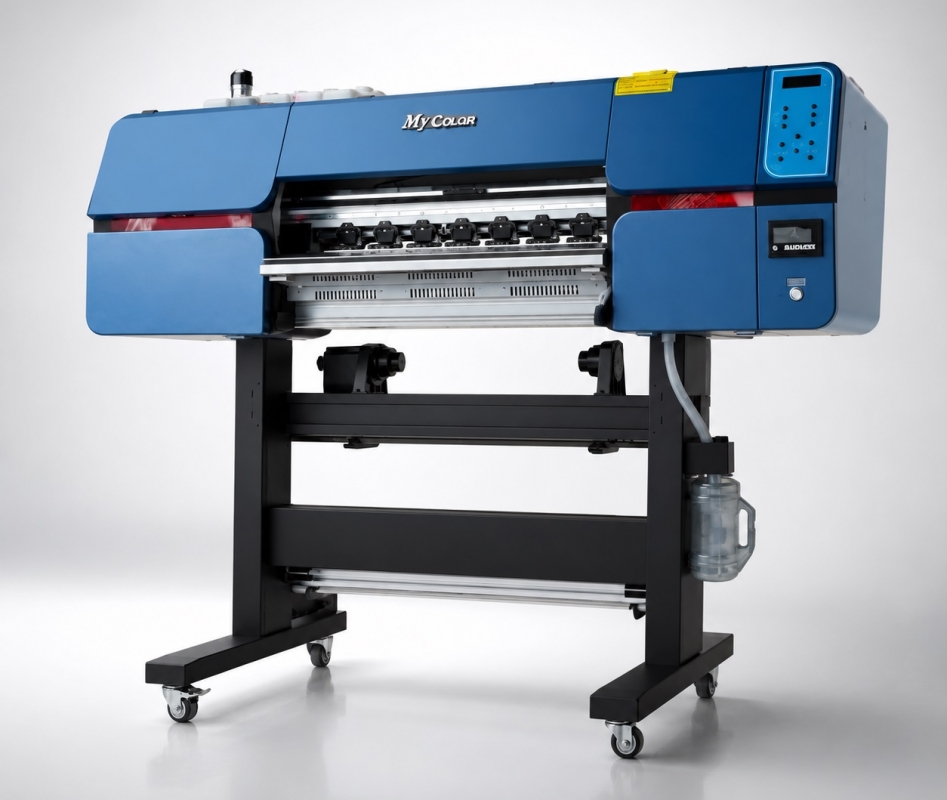

MyColor 24" 2 Head DTF Printing System
The 24-inch 2-Head DTF Printing System is a complete, production-ready solution designed for apparel decorators, custom print shops and growing garment businesses. Equipped with two Epson I3200-A1 printheads, the system prints colour and white ink simultaneously, delivering sharp detail, smooth gradients, strong colour density and consistent white underbase coverage.

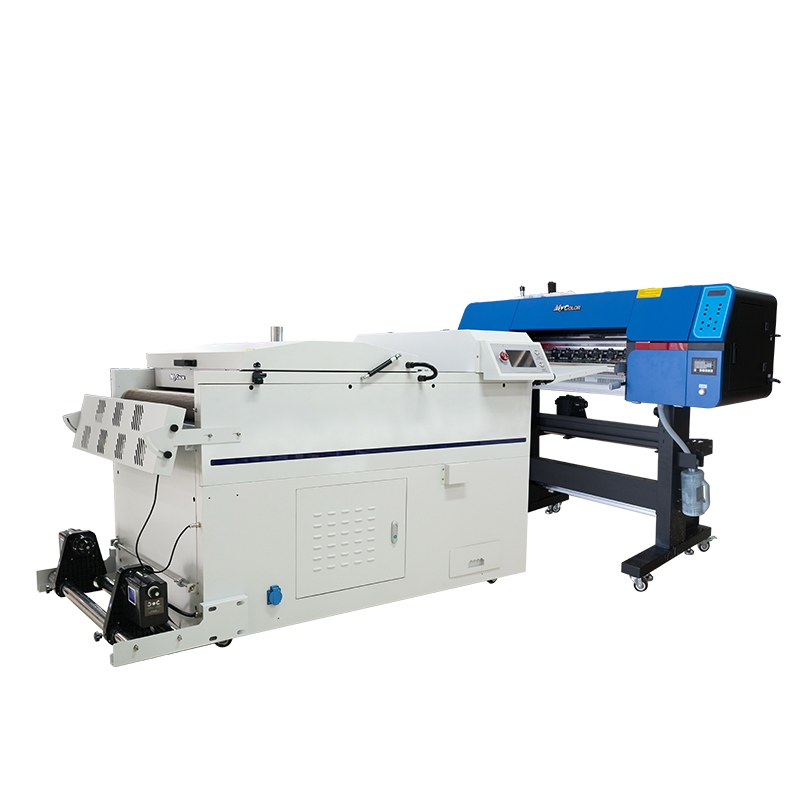

With a maximum print width of 600 mm (24 inches), the MyColor system is suitable for individual graphics, gang sheets and larger garment designs. The included automatic powder shaker and curing unit creates a streamlined roll-to-roll workflow by applying adhesive powder, removing excess powder and curing the printed film before it is transferred to the garment.
Key Features
- Dual Epson I3200-A1 printheads for reliable, high-resolution colour and white-ink production
- Up to 600 mm / 24-inch print width for efficient gang-sheet printing
- CMYK plus white pigment ink configuration
- Up to 3200 dpi resolution for fine text, detailed artwork and smooth tonal transitions
- Production speeds up to 14 m²/hour in four-pass mode
- Automatic white-ink circulation system helps keep white pigment moving and supports more consistent output
- High-precision aluminum frame provides stability during continuous production
- Adjustable pinch-roller pressure supports accurate and reliable film feeding
- Teflon belt transport system moves printed film smoothly through the curing process
- Automatic powder application and excess-powder removal
- Infrared curing system with five intelligent heating tubes
- Compatible with commonly used 30 cm, 45 cm and 60 cm DTF film widths
Production Speeds
| Print Mode | Rated Speed |
|---|---|
| 4 Pass | Up to 14 m²/hour |
| 6 Pass | Up to 8 m²/hour |
| 8 Pass | Up to 6 m²/hour |
Advantages of the Audley 2 Head DTF System
Complete Print-to-Cure Workflow
The printer and automatic shaker work together as one production system. Once the image is printed, the film moves directly into the powder and curing unit, reducing manual handling and helping maintain a consistent production process.
High Productivity Without a Large Footprint
The two-head configuration provides a practical balance between output speed, print quality and operating cost. It offers considerably more production capability than smaller desktop DTF systems while remaining suitable for small and medium-sized print shops.
Versatile Garment Decoration
DTF transfers can be applied to a broad range of suitable fabrics and garment colours, allowing businesses to produce:
- T-shirts and hoodies
- Sportswear and team uniforms
- Workwear and promotional apparel
- Tote bags and backpacks
- Caps, footwear and compatible textile accessories
Efficient Gang-Sheet Production
The 24-inch print width gives operators space to combine multiple customer orders, logos and garment graphics onto a single roll. This improves film utilization, reduces setup time and supports profitable short-run and on-demand production.
Detailed and Vibrant Output
The Epson I3200-A1 printheads are designed for high-density nozzle performance. Combined with CMYK and white pigment inks, they support crisp text, detailed images, smooth colour transitions and a solid white foundation for transfers applied to dark garments.
Designed for Consistent White-Ink Operation
White DTF ink naturally contains heavier pigment that can settle over time. The integrated circulation system keeps the ink moving through the system, helping reduce sedimentation and supporting more dependable white-ink output.
Automatic Powder and Curing Control
The shaker’s automated powdering, belt movement and infrared heating reduce operator involvement compared with manually powdering and curing individual sheets. The result is a more repeatable process with better suitability for ongoing commercial production.
