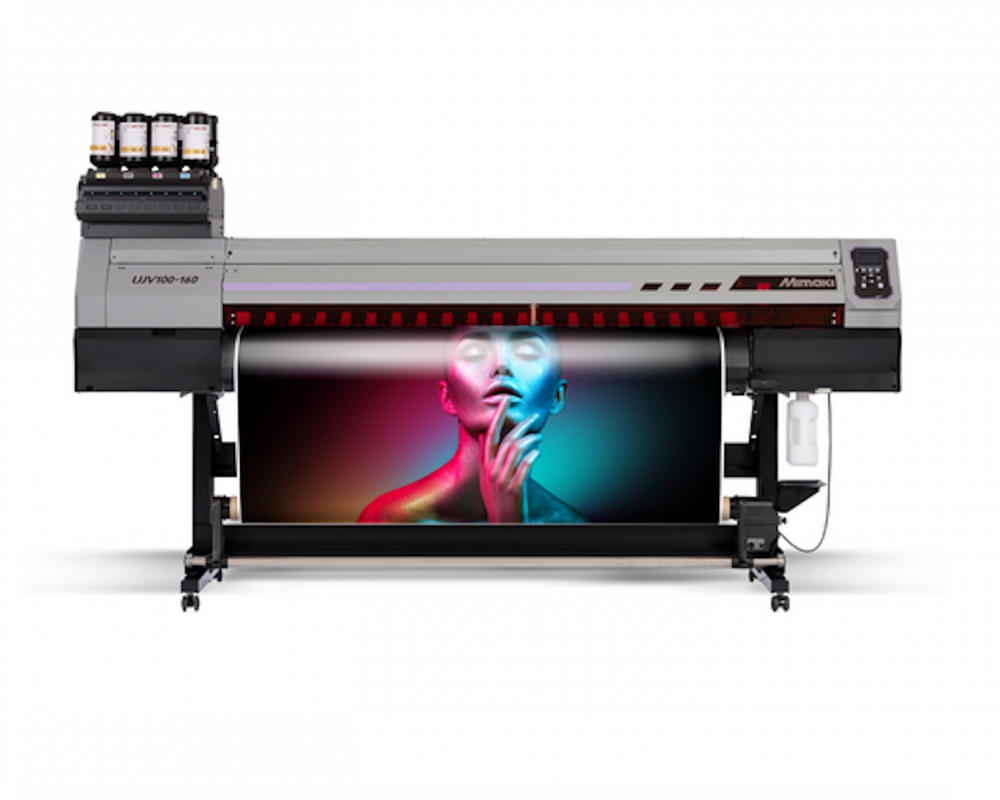

UJV100-160
Manufacturer: Mimaki
Productivity And Versatility At An Entry-Level Price
The UJV100-160 is a competitively priced UV-LED roll-based printer with all the productivity features of higher-end models. It features Mimaki instant-dry UV-LED inks that adhere to a variety of media, including paper, PET film, fabric, vinyl, and more, making post-printing handling and finishing effortless. With UV light, UV-LED inks cure instantly, dramatically increasing printing speed and efficiency. This multi-purpose machine is suited for a variety of applications while keeping costs low, and offers:
- 160 cm width, with print speeds up to 23m2/h
- High media versatility with unparalleled scratch resistance
- New Dot Adjustment System (DAS) automates dot position and feeding corrections, reducing manual intervention and workflow interruption
- Eco-friendly, six color inkset in 1-liter bottles: C, M, Y, K, W, Cl
- Instantly cured prints for shorter turnarounds and additional cost savings
Specifications
| Printhead |
Two on-demand piezo heads, staggered layout |
| Print Resolutions |
360 dpi, 720 dpi, 900 dpi, 1200 dpi |
| Print Speed (4 Color Mode) |
23 m²/h (Draft), 18.6 m²/h (High Speed) |
| Maximum Print Area |
63.4″ (1610.0 mm) |
| Maximum media width |
63.8″ (1620 mm) |
| Maximum Media Thickness |
up to 1 mm |
| Maximum Media Weight |
up to 45 kg |
| Ink Type |
U.S. & Canada- LUS-170 |
| Ink Package Size |
1L bottle |
| Interface |
USB2.0 / Ethernet |
| Power Supply |
Single phase AC100 – 120 / 200 – 240V ±10%, 50/60Hz±Hz |
| Operational Environment |
Temperature 20° – 30°C |
| Dimensions (W × D × H) |
2775 x 700 x 1392 mm |
| Weight |
167 kg |
| Options |
Ionizer / Level foot / Lift-up block |
