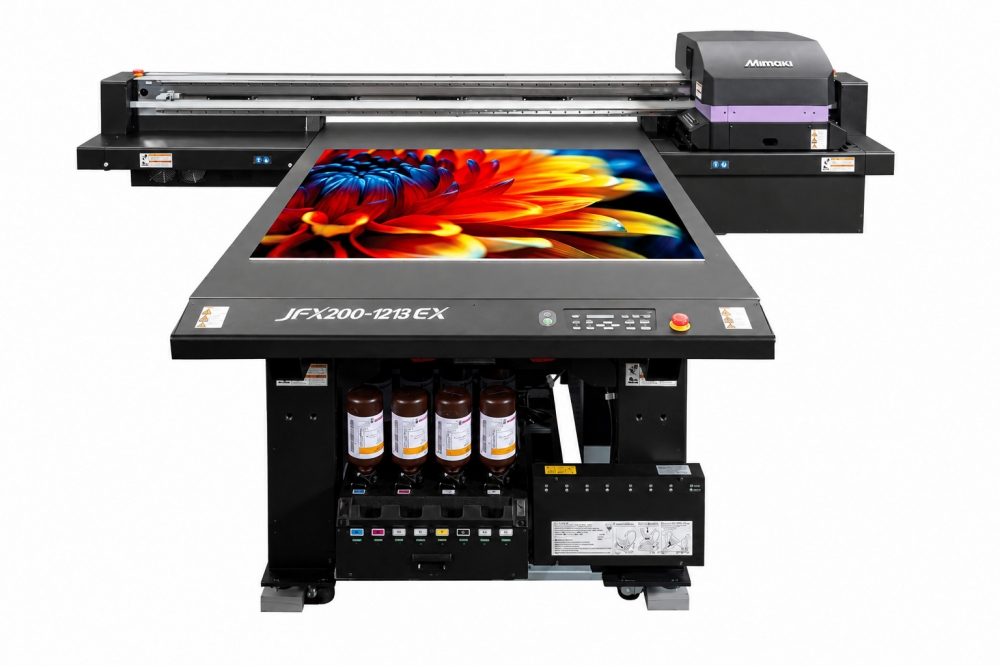

Mimaki JFX200-1213 EX UV-LED Flatbed Printer
The Mimaki JFX200-1213 EX is a compact large-format UV-LED flatbed printer designed for high-quality direct printing onto rigid boards, promotional products and other compatible materials. Its 50 in. x 51.2 in. print area combines practical production capacity with a smaller footprint, helping print providers expand into signage, packaging prototypes, custom graphics and value-added textured applications.
Key Features
- 50.0 in. x 51.2 in. maximum print area for versatile rigid-media and direct-to-object production.
- Production speeds up to 269 sq. ft./hour (25 sq. m/hour) in four-colour mode.
- Three staggered on-demand piezo printheads support productive, high-quality output.
- Print resolutions up to 1200 dpi for fine text, detailed graphics and smooth colour transitions.
- Media thickness up to 1.97 in. (50 mm) supports boards and a wide range of compatible objects.
- Two-zone vacuum table helps keep media securely positioned during printing.
- UV-LED curing technology enables direct printing on compatible acrylic, wood, metal, glass and other materials.
- White, clear and primer options are available with compatible ink configurations.
- 2.5D and layered printing capabilities support textured graphics, raised effects and Braille applications.
- Automatic nozzle monitoring and recovery help maintain dependable production.
- GREENGUARD Gold certified Mimaki UV inks are available for rigid, flexible and specialty applications.
- RasterLink7 RIP workflow and PICT cloud monitoring support efficient production management.
Technical Specifications
| Specification | JFX200-1213 EX |
|---|---|
| Print technology | UV-LED flatbed inkjet; three piezo printheads |
| Maximum print area | 50.0 x 51.2 in. (1270 x 1300 mm) |
| Maximum media area | 52 x 54 in. (1320 x 1370 mm) |
| Maximum media thickness | 1.97 in. (50 mm) |
| Maximum media weight | 110.3 lb (50 kg) |
| Maximum print speed | 269 sq. ft./hour (25 sq. m/hour) |
| Print resolutions | 300, 450, 600, 900 and 1200 dpi |
| Vacuum zones | 2 |
| Ink options | LH-100, LUS-120, LUS-150, LUS-350; configuration-dependent white, clear and primer |
| Power requirements | Single-phase AC 200-240 V, 50/60 Hz |
| Maximum power consumption | 2.88 kVA |
| Operating temperature | 15-30 deg. C |
| Operating humidity | 35-65% RH, non-condensing |
| Machine dimensions | 125 x 96 x 49 in. (3175 x 2450 x 1250 mm) |
| Machine weight | 1124 lb (510 kg) |
Advantages of the Mimaki JFX200-1213 EX
Compact Flatbed Production
The 50 in. x 51.2 in. print area supports useful large-format output in facilities that do not need a full 4 ft. x 8 ft. flatbed. It is suited to short runs, customized graphics, specialty signage and direct-to-object production.
White, Clear and Textured Printing
Compatible white and clear ink configurations expand possibilities on transparent, coloured and specialty materials. Layered output supports raised graphics, tactile finishes and Braille applications.
Flexible Ink Choices
Mimaki LH-100 rigid inks, LUS-120 and LUS-150 flexible inks and LUS-350 thermoforming-capable inks accommodate different materials and applications. Optional PR-200 primer is supported on compatible configurations.
Reliable Mimaki Technologies
Mimaki Circulation Technology helps maintain white-ink consistency. The Nozzle Check Unit, Nozzle Recovery System, MAPS4, Variable Dot Technology, Waveform Control, Mimaki Fine Diffusion and Mimaki Clear Control contribute to dependable image quality.
Applications
- Indoor and outdoor signage and display graphics
- Point-of-purchase and retail displays
- ADA-style tactile and Braille signage
- Custom promotional products and direct-to-object printing
- Personalized awards, plaques and decorative panels
- Packaging prototypes and short-run specialty packaging
- Compatible acrylic, glass, wood, metal and rigid boards
- Textured, layered and 2.5D specialty graphics
