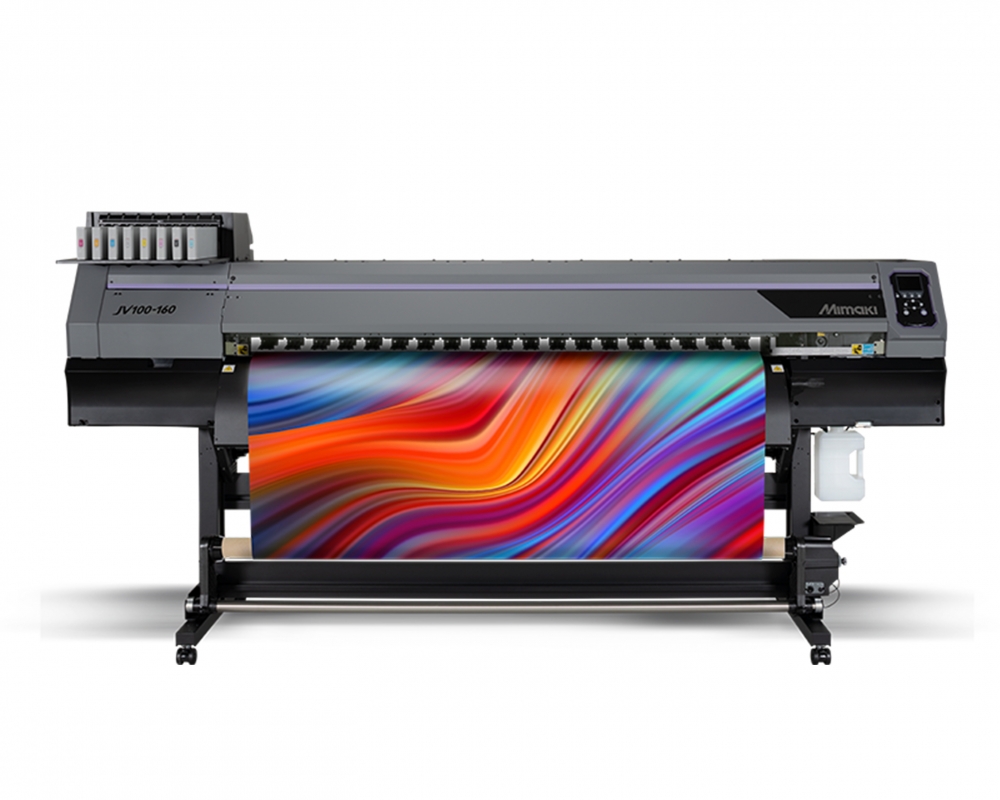

JV100-160
Manufacturer: Mimaki
Expert Printing Made Easy
The JV100-160 is an affordable professional-grade eco-solvent roll-based model. Perfect for high-quality fine art reproduction to vehicle wrap printing and more.
- Available in 64” with print speeds up to 677 Sq Ft/Hr
- Eco-solvent: New AS5 Ink 4 color and 8 color options including Orange and Light Black inks
- NEW Dot Adjustment System (DAS) automatically aligns to ensure consistent quality and repeatability
- Nozzle Check Unit (NCU), automatically monitors printhead performance and detects clogged nozzles
- The Nozzle Recovery System (NRS), automatically substitutes unproductive nozzles, avoiding unnecessary downtime and poor image quality
- NEW, easier to use RIP software, RasterLink7, included; reduces RIP time by 25%
Specifications
| Printhead |
Two staggered on-demand |
| Print Resolutions |
360 dpi, 540 dpi, 600 dpi, 720 dpi, 900 dpi, 1080 dpi, 1,200 dpi |
| Print Speed (4 Color Mode) |
677.05 |
| Maximum Print Area |
63.3″ (1610.0 mm) |
| Maximum media width |
63.8″ (1620 mm) |
| Maximum Media Thickness |
up to 0.04″ (1 mm) |
| Maximum Media Weight |
up to 99.2 lbs |
| Ink Type |
U.S. & Canada- |
| Ink Package Size |
600ml or 2000ml |
| Interface |
1000 Base-T Ethernet cable or USB2.0 cable |
| Power Supply |
AC100~120V/ 200~240V±10%, 50/60Hz±1Hz |
| Operational Environment |
Temperature 20° – 30°C |
| Dimensions (W × D × H) |
3,775mm (12.38ft) or more (Machine size: 2,775mm(9.1ft)) 2,700mm or more (Machine size: 700mm(2.29ft)) |
| Weight |
166kg (366lb) |
