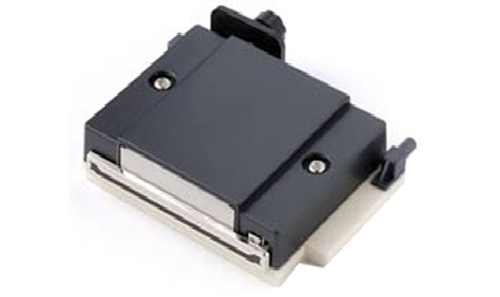

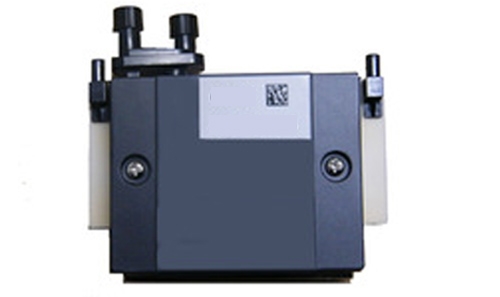

Printhead UJF-605C/605rh

Manufacturer: Mimaki

This UJF-605C printhead assy is suitable for the Mimaki UJF-605C printers.

UJF-605C Head Assy

Product Specifications

  • Technology: Multi-drop grayscale micro-piezo
  • Grayscale levels: 8
  • Active nozzles: 318
  • Print swathe width: 53.6 mm
  • Nozzle pitch: 169 μm
  • Native resolution: 150 dpi
  • Printhead weight: 148 g
  • Dimensions: 85 x 70 x 23 mm
  • Drop volume: 6 - 90 pl
  • Typical firing frequency: 4.8 kHz
  • Ink Compatibility: oil-based pigment ink and UV curable pigment ink
