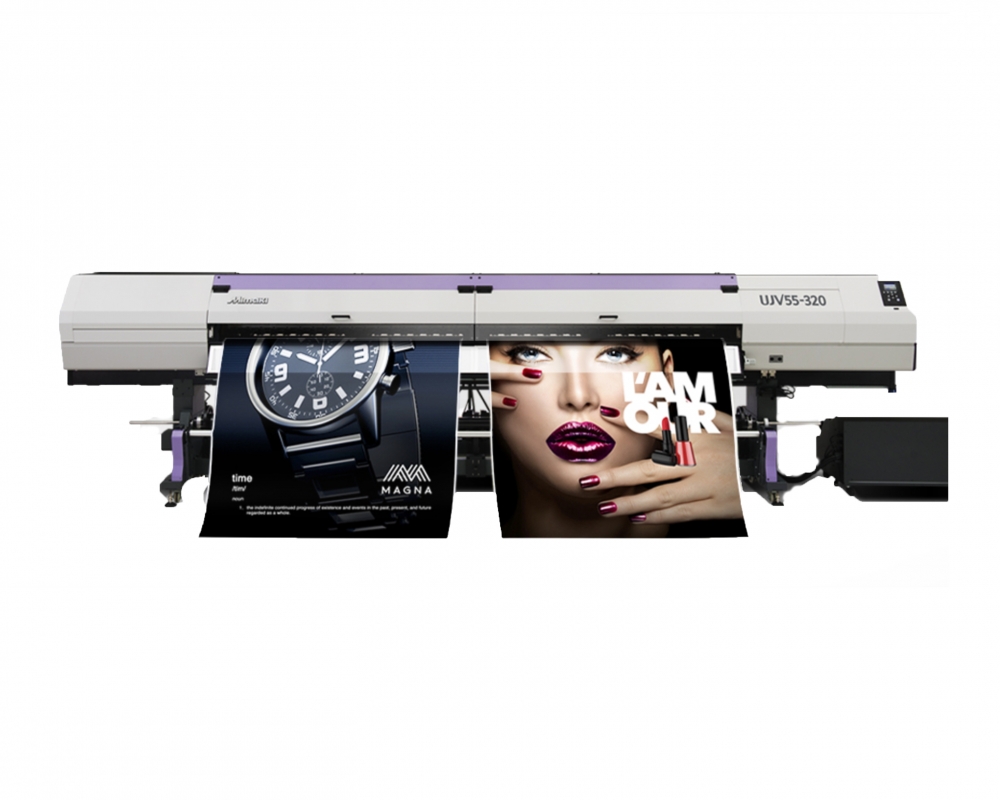

UJV55-320

Manufacturer: Mimaki

High-Volume Production Of Oversized Graphics

This superwide UV-LED printer features seven ink colors, including white, so you can print oversized graphics and panels or simultaneously onto two rolls.

It can successfully produce banners, retail displays, wallpaper and more.

  • Maximum print speed of 1,184 SqFt/Hr

  • Layered and dual roll printing with up to six colors and white

  • Mimaki Proofing Panel for instant print quality check

  • Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks

  • RIP software RasterLink6 Plus included


Specifications

Printhead

Four on-demand piezo heads in a staggered array

Print resolution

300dpi, 600dpi, 900dpi, 1,200dpi

Print speed (4 color mode)

up to 1194.78 SqFt/Hr (111 m2/h)

Maximum Print Area

126″ (3200 mm)

Maximum media width

128″ (3250 mm)

Maximum Media Thickness

up to 0.04″ (1 mm)

Maximum Media Weight

220.7 lbs. (39.10 roll holders) {100 kg (18 roll holders)}

Ink Type

U.S. & Canada- LUS-120 | Mexico, Central & South America- LUS-120

Interface

Ethernet 1000BASE-T, USB2.0 Hi-speed

Power Supply

Single-phase (AC200 – 240V±10%) 50/60Hz ±1Hz 18A or less

Power Consumption

AC200V: 4.3kW or less

Operational Environment

Temperature 68° – 86° F (20-30° C)
Humidity: 35–65 % RH (Non condensing)

Dimensions (W × D × H)

223.6″ x 48″ x 56.7″ (567.9 mm x 121.9 mm x 144 mm)

Weight

2006 lbs. (910 kg)
