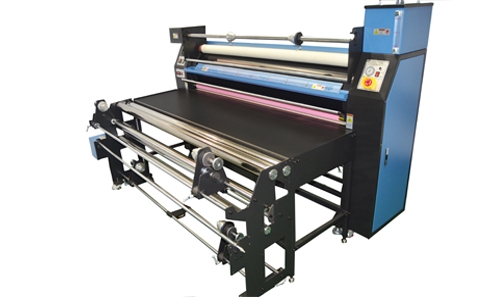

67" Calender Heat Transfer System w/ 10"ø Oil Drum CX-181

Manufacturer: Royal Sovereign

Quick Overview

The versatile 67" calender heat transfer system offers the functionality to transfer ink on cut pieces or continuous roll to roll transfer. The 10" diameter self-contained oil heated drum provides for a stable and continuous heat distribution ensuring a quality transfer every time. The CX-181 has be designed specifically for sign and print shops seeking to expand their product offerings.

The CX-181 is a high quality affordable calender heat transfer system specifically designed to provide comfort and ease of use. The detachable feed table allows an user the flexibility to transfer inks to single sheet fabrics or to run roll to roll transfers. The solid heavy-duty steel frame construction and innovative infra-red quartz heating technology makes the CX-181 a dependable transfer system you can rely on for years to come.

Features

  • Extra-long self-contained oil drum to ensure complete heat distribution and coverage
  • Finely tuned sensors to ensure consistent temperatures throughout the transfer process
  • Universal core adapters and shaft-less unwinding technology



Safety Features

  • Easy to reach front and rear facing emergency stops
  • Emergency Reverse



Applications

  • Soft fabric signage
  • Trade show graphics
  • Apparel, Sports Wear, Furniture and more...





Model Number  CX-181
Optimal Transfer Width  67"
Maximum Tempature  446°F (230°C)
Heating System  Self Contained Oil
Drum Diameter  10"
Maximum Speed  5.4 ft/min
40 sec Exposure 1.8 ft/min
30 sec Exposure  2.3 ft/min
Display  Digital
Warm Up Time  1 hour
Voltage  220V
Consumption (Watts) 13,500
Amps  36A
Dimensions  97"x 43"x 63"
Unit Weights (lbs) 2083
Shipping Dimensions  102"x 55"x 75"
Crate Weight (lbs) 2270
