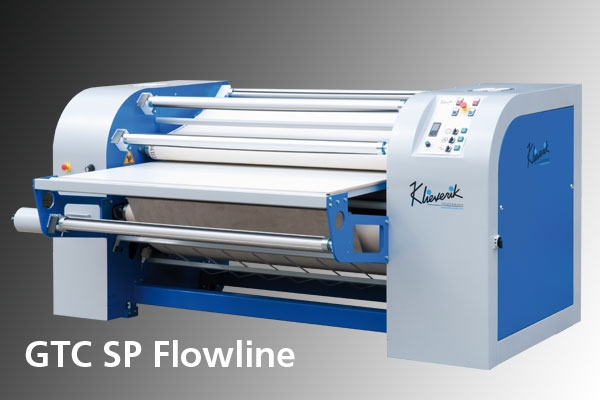

KLIEVERIK GTC SP-FLOWLINE

Manufacturer: KLIEVERIK


The GTC-SP model Flowline has been designed for the efficient production of single pieces transfer printing, but is also capable of cut sheet repeat jobs or roll-to-roll transfer printing. All kind of materials like woven – stretch – knits - non woven can be printed with applications ranging from athletic apparel to door mats.

The excellent guiding of the long belt and the steady run of the paper and material make it possible to print with the highest edge sharpness. The stable temperature of the oil based and electrical heated drum will give you an extremely good colour brilliance.



The calenders are standard equipped with:

  • Infeed table with adjustable height
  • Protection bar to prevent an operator from damaging the printed paper
  • Front out feed for single sheet production
  • Wind and unwinding shafts for transfer and protection paper, each with tensioning device
  • Optimized workflow without ‘ghosting’ of the image
  • Cooling down timer
  • Air pressure operated paper tension setting
  • Exhaust extraction bar

Many features can be added

  • Extended infeed table
  • Textile unwind and winding position for roll-to-roll printing
  • Pneumatic winding shafts
  • Compressor
  • Touch screen with remote control capabilities
Type  Drum (size) inch Drum (width) inch Working (width) inch Through Put (30sec. Dwell) M2/HR Through Put (30 sec. Dwell) FT2/HR Linear Speed (30sec.Dwell) M/MIN

Linear Speed (30sec.Dwell)  FT/MIN

GTC 81/1850SP Flowline 7.7" 72.8" 64.9" 59.4 642 0.60 2
GTC 101/1850SP Flowline  14.4" 72.8" 64.9" 115 1226 1.15 3.8
GTC 111/2000SP Flowline 19.7" 78.7" 70.8" 175 1884 1.6 5.3
